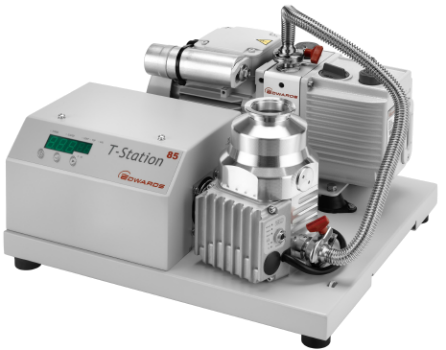

T-Stations 85

Name: T-Stations 85
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The T-Station 85 turbomolecular pumping station seamlessly combines an nEXT85H turbopump with either a dry pump or oil sealed pump and a simple controller, providing pumping speeds of 47l/s – 84 l/s.

47 - 84 l/s

Choice of backing pumps and inlet ports for different pumping speeds

Plug and Pump

Single start/stop button, with automated functions for safe use

Compact

Compact with a low profile for a more stable unit that cannot be knocked over

Robust Construction

Rugged all-metal frame that does not crack nor break with use

User Serviceable

The user can service the nEXT turbo pump, the XDD1 dry diaphragm and the E2M1.5

View full details

Edwards T-Station Sizes		nEXT85 NW40	nEXT85 ISO/CF63
Inlet Flange		NW40	ISO/CF63
Pumping speed for N₂	l/s	47	84
Compression ration for N₂		>1x10¹¹	>1x10¹¹
Backing pump speed 50 Hz (wet)	m³/h	1.6	1.6
Backing pump speed 50 Hz (dry)	m³/h	1.2	1.2
Ultimate vacuum	mbar	<5x10⁻¹⁰	<5x10⁻¹⁰
Noise level at ultimate	dB(A)	<56	<56
Controller		TAG	TAG
Backing pump options		XDD / EM	XDD / EM

Documentation

T-Station85 Dataseet

Our T-Station is a low cost, compact turbomolecular pumping station that seamlessly combines an nEXT85H or EXT75DX turbomolecular pump with either a dry diaphragm or oil sealed backing pump, and a simple controller, providing pumping speeds of 47 to 84 l/s.

The T-Station comes with an integrated Turbo and Active Gauge controller which enables single button start/stop of the system. With the ability to control one of our active gauges, vent valve control and delayed start of the turbomolecular pump to either time or pressure if a gauge is fitted, the T-Station ideal for general laboratory needs.

Request a Quote

TAG Controller Datasheet

1 6

Product Features

COMPACT LOW PROFILE
Base plate includes rubber feet and cut-outs in the sides for manual handling, giving a compact low profile but stable design that cannot be knocked over.
CUSTOM INTEGRATED CONTROLLER FEATURES
Single dedicated button to start/stop pumps; Easy to read accurate display; Ability to select vent mode where a TAV5 vent valve is fitted for automated venting with no user intervention.
USER SERVICEABLE
The nEXT85 turbomolecular pumps, XDD1 dry diaphragm pump and E2M1.5 backing pump are all user serviceable.

INTEGRATED AIR COOLER
Acts to cool internal power supply and pump/controller for quiet operation avoiding multiple fans.
RUGGED METAL FRAME
All metal frame means rugged design that can take abuse without cracking or breaking.
INLET FLANGE OPTIONS
Available with either an NW40, ISO63 or CF63 inlet flange to suit your application.

Dimensions

Performance Curve

Sustainability
