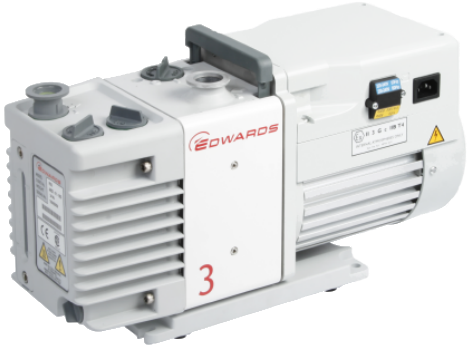

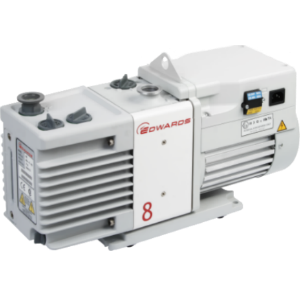

RV Rotary Vane

Name: RV Rotary Vane
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The Rv Series Is The World's Standard For Oil-lubricated Rotary-vane Laboratory Vacuum Pumps. It Is Considered As The Most Rugged And Best Performing Pump In It's Class, And Is Still Today The Undisputed Leader In It's Industry.

SUPERIOR PERFORMANCE

Rugged pump with extreme vacuum and process performance

0.002 mbar

Excellent vacuum levels even with Gas Ballast

EXTREME VAPOUR HANDLING

Through a unique combination of Gas Ballast and Dual-mode

< 48 dB(A)

Very quiet operation for a better work environment

ATEX & FOMBLIN

Atex and Fomblin versions also available

View full details

RV Rotary Vane Pumps		RV3	RV5	RV8	RV12
Peak pumping speed	m³/h	3.3	5.1	8.5	12
Ultimate vacuum	mbar	0.002	0.002	0.002	0.002
Ultimate vacuum with gas ballast	mbar	0.03	0.03	0.03	0.03
Water vapour handling capacity	g/h	220	220	220	290
Noise at ultimate	dBA	48	48	48	48

Documentation

RV Brochure

RV oil sealed pumps have been the industry standard rotary vane pump for laboratory applications for many years thanks to design features that make them low cost to operate and maintain versus other rotary pumps.

With their unique mode selector, one pump can be used for both high throughput and high vacuum applications; selfcentring mechanism, no dowels to set and can replace any component; high vapour pumping capability and broad range of accessories makes RV pumps the best long term proposition for laboratory applications.

Request a Quote

1 6

Product Features

FAST-ACTING INLET VALVE
for pump isolation in case of electrical or power failure
UNIQUE MODE SELECTOR SWITCH
enables high vacuum and high throughput operation from a single pump
HIGH GAS BALLAST FLOW RATE
for up to 220 gh⁻¹ water vapour pumping capacity

LOW NOISE
at just 48 dB(A)
EASY MAINTENANCE
self-aligning parts, no special tools required
HIGH QUALITY OILS
longer lasting with special additives to prolong life whilst not impacting vapour pressure

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
