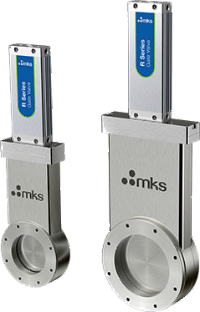

R Series Gate Valve

Name: R Series Gate Valve
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

Roughing Pump Isolation for Semiconductor Sub-Fab and General Vacuum Applications

The MKS R Series Gate Valve is optimized for isolation of roughing pumps and roughing lines in both semiconductor and general vacuum applications. The R Series is available with a range of options, including pneumatic and manual actuators, lock out tag out capability, and soft-pump bypass to eliminate turbulence and associated particle generation during pumpdown from atmosphere. The R Series employs an elastomer shaft seal for the actuator seal, which enables high performance in a cost effective, high value package for roughing vacuum applications. The stainless steel version of the R Series Gate valve is available in DN80, DN100, and DN160 sizes.

View full details

Features

Cost effective and High value
Allows roughing pump to stay in operation during foreline maintenance

Soft-Pump Bypass Options:

Enables gradual foreline pump down from atmosphere
Eliminates turbulence and associated particle generation during pump down

High Performance Heater Options:

Excellent temperature uniformity ensures no cold spots on internal surfaces Prevents condensation of effluents and corrosive gases

Long cycle life

DN80 & DN100 > 200,000 cycles
DN160 > 100,000 cycles'
Stainless steel and aluminum versions
Available in DN80, DN100, DN160mm sizes

Download data sheet for more information
