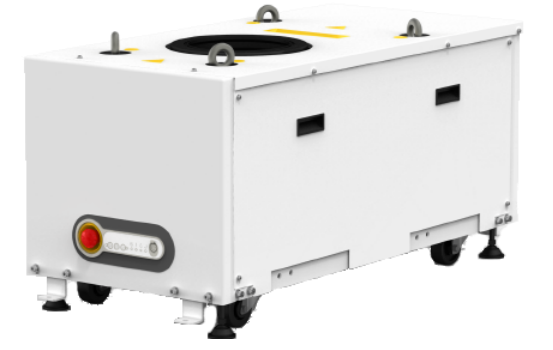

PXH Mechanical Booster

Name: PXH Mechanical Booster
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The pXH pumps represent the new generation of large mechanical boosters providing high pumping capacity with reduced footprint.

6.965 - 8.358 m³/h

Larger displacement that equivalent competitor models, faster pump-down times

Inverter driven control

Inverter driven control for ‘Plug and Pump’, flexible operation and automated control of your process

Simple Installation

No need for pressure switches, bypass lines or variable frequency drives.

Robust & Reliable

Designed to withstand harsh industrial applications.

Consistent output

Reliable and repeatable performance

View full details

PXH SIZES		PXH4500	PXH6000
Displacement	m³/h	6965	8358
Drive type		inverter	inverter
Inlet connection	ISO	200	250
Outlet connection	ISO	160	160
Motor rating	kW	7.5	7.5

Documentation

pXH Product Information

Available in sizes from 6965 to 8358 m³/h displacement, are packaged as separate pumps with inverter driven controls. Designed to withstand harsh processes, they have a field proven reliability from the large installed base. pXH can be easily integrated with GXS, the last generation Edwards Industrial on board controlled dry pumps, into a high pumping speed dry pumping system.
