Passive Gauges

Name: Passive Gauges
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

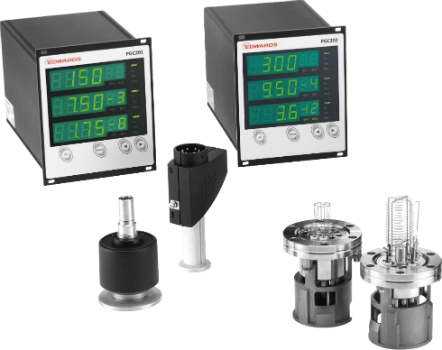

Edwards is proud to introduce our new range of passive gauge heads and controllers, selected specifically to complement the current Edwards range of active gauges and controllers. These passive gauges offer a solution for measuring pressure in a wide range of applications, from UHV systems to process industries or wherever the use of an active gauge is not possible e.g. Cyclotrons.

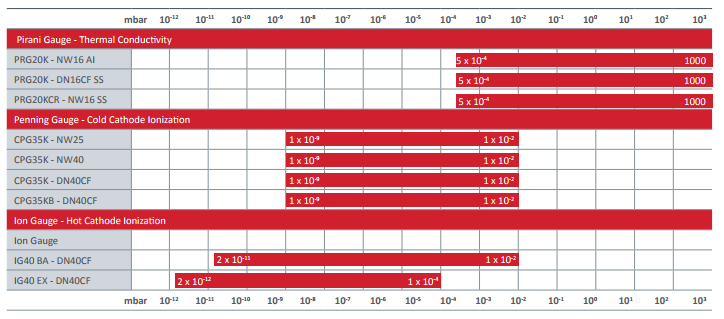

Pirani Gauge

5x10⁻⁴ to 1000 mbar

Penning Gauge

1⁻⁹ to 10⁻²mbar

Bayard-Alpert Ion Gauge

2⁻¹¹ to 10⁻² mbar

Extractor Ion Gauge

2⁻²to 10⁻⁴ mbar

New Gauge Controller

Radiation resistant and Bakeable Gauge system

View full details

Pirani Gauge Sensors

(Thermal Conductivity Technology)

RANGE 5X10⁻⁴ TO 1000 MBAR

TUNGSTEN OR PLATINUM FILAMENT

COST-EFFECTIVE SENSING CELL

FULLY ALIGNED AND TEMPERATURE COMPENSATED 0 TO +40°C

CONSTANT FILAMENT TEMPERATURE

PRG20K Technical Data		PRG20K - NW16	PRG20K - DN16CF	PRG20KCR - NW16
Measurement range	mbar	5 × 10⁻⁴ to 1000	5 × 10⁻⁴ to 1000	5 × 10⁻⁴ to 1000
Filament		Tungsten	Tungsten	Platinum
Permissible overload (abs.), max.	bar	3	10	10
Vacuum connection		NW16	DN16CF	NW16
Materials in contact with the medium		Aluminum, Vacon, Glass, Tungsten, CrNi 8020, Nickel plated steel, epoxy adhesive	Stainless steel, Vacon, Tungsten, CrNi 8020, ceramics, Al2 O3 , NiFe 42	Stainless steel 1.4301 (SS 304), Al2 O3 , CrNi 8020, Platinum

Penning Gauge Sensors

(Cold Cathode Ionisation Technology)

RUGGED

INSENSITIVE TO AIR INRUSHES AND VIBRATIONS

EASY DISASSEMBLY AND CLEANING

EXCHANGEABLE CATHODE PLATE

IMPROVED IGNITION CHARACTERISTIC

CPG35 Technical Data		CPG35K NW25	CPG35K NW40	CPG35KDN40CF	CPG35KBDN40CF
Measurement range	mbar	1 x 10⁻⁹ to 10⁻²	1 x 10⁻⁹ to 10⁻²	1 x 10⁻⁹ to 10⁻²	1 x 10⁻⁹ to 10⁻²
High voltage supply (anode potential)	kV	3.3	3.3	3.3	3.3
Trigger voltage	kV	1.6	1.6	1.6	1.6
Materials in contact with the medium		Stainless steel, Nichrome, Ceramics, Titanium	Stainless steel, Nichrome, Ceramics, Titanium	Stainless steel, Nichrome, Ceramics, Titanium	Stainless steel, Nichrome, Ceramics, Titanium
Vacuum connection		NW25	NW40	DN40CF	DN40CF

Ion Gauge Sensors

(Hot Cathode Ionisation Technology)

EXCHANGEABLE CATHODE

HIGH ACCURACY MEASUREMENTS

RANGE: 10⁻⁴ TO 2 X 10⁻⁹ MBAR

PROTECTION SHIELD WELDED IN PLACE

SIGNIFICANT REDUCTION OF X-RAY AND ION DESORPTION EFFECTS

IG40 Technical Data		IG40 BA	IG40 EX
Measurement range	mbar	2 x 10⁻¹¹ to 10⁻²	2 x 10⁻¹² to 10⁻⁴
X-ray limit	mbar	≤10⁻¹¹	≤10⁻¹²
Material Cathode Anode Collector Reflector		Iridium with yttrium oxide coating Pt/Ir 90/10 and Mo/pt wrapped wire Tungsten	Iridium with yttrium oxide coating Mo and CoNiCr Tungsten NiFe
Sensitivity for nitrogen	mbar⁻¹	17.0	6.25
Vacuum connection		DN40CF	DN40CF

Selecting Your controller

Edwards PGC201 controller covers the pressure range between 10⁻⁹ and 1000 mbar by combining two measurement principles from the PRG and CPG gauges. The PGC202 combines PRG gauges and IG40 BA or IG40 EX gauges for measurements of vacuum pressures in the range between 10⁻¹² and 1000 mbar. Both these controllers provide monitoring and control functions for the connected gauges

Technical Data		Pirani/Penning Controller PGC201	Pirani/Ion Controller PGC202
Measurement range	mbar	Channel 1,2 (PRG): 5×10⁻⁴ to 1000 Channel 3 (CPG): 5×10⁻⁴ to 1000 (IG40 BA): 10⁻⁹ to 10⁻² (IG40 EX): -	Channel 1,2 (PRG): 5×10⁻⁴ to 1000 Channel 3 (CPG): - (IG40 BA): 2×10⁻¹¹ to 10⁻² (IG40 EX): 2×10⁻¹² to 10⁻⁴
Measurement uncertainty		PRG: ≤20% of the measured value in the range 10⁻³ to 10² mbar (±20%) CPG: ≤20% of the measured value in the range 10⁻² to 10² mbar (±15%) IG40 BA/EX: ±30% of the measured value in the range 10⁻⁸ to 10⁻²	PRG: ≤20% of the measured value in the range 10⁻³ to 10² mbar (±20%) CPG: ±/- 2% of the measured value IG40 BA/EX: 1×10⁻⁸ to 1×10⁻¹¹
Adjustable switching thresholds	mbar	PRG: 10⁻⁴ CPG: 5×10⁻³ to 500 IG40 BA: 5×10⁻³ to 500 IG40 EX: 1×10⁻⁸ to 9.9×10⁻³	PRG: +/- 2% of the measured value CPG: 5×10⁻³ to 500 IG40 BA: 1×10⁻⁸ to 5×10⁻³ IG40 EX: 1×10⁻¹¹ to 1×10⁻¹¹
Power Consumption	W	<10	<60
