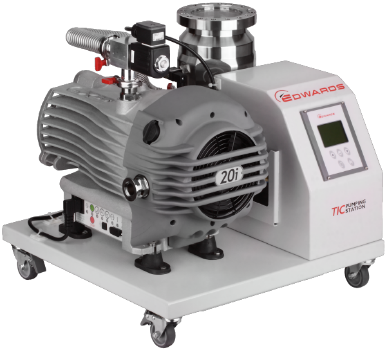

NEXT Turbopumping Station

Name: NEXT Turbopumping Station
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

Edwards range of nEXT turbomolecular pumping stations has been developed to provide a comprehensive vacuum solution with the latest technological advances for easy installation and operation.

47 - 400 l/s

Range of turbomolecular pump options

Fully Controllable

Control of pumps, instruments with full serial remote communications available

Robust Metal Frame

All-metal frame for a robust and easily mobile system and kit for safe desktop operation

Low Vibration

Low levels of transmitted vibration from backing pump

User Serviceable

All nEXT turbos and nXDS backing pumps are user serviceable

View full details

Turbopumping Station Technical Data		nEXT85 NW40	nEXT85 ISO/CF63	nEXT240 ISO/CF100	nEXT300 ISO/CF100	nEXT400 ISO/CF160
Pumping speed for N₂	l/s	47	84	240	300	400
Compression ratio for N₂		>1x10¹¹	>1x10¹¹	>1x10¹¹	>1x10¹¹	>1x10¹¹
Backing pump speed 50 Hz (wet)	m³/h	5 - 12	5 - 12	5 - 12	5 - 12	5 - 12
Backing pump speed 50 Hz (dry)	m³/h	1.2 - 22	1.2 - 22	6 - 22	6 - 22	6 - 22
Ultimate vacuum	mbar	<5x10⁻¹⁰	<5x10⁻¹⁰	<5x10⁻¹⁰	<5x10⁻¹⁰	<5x10⁻¹⁰
Noise level at ultimate	dB(A)	<56	<56	<56	<56	<56
Controller		TIC	TIC	TIC	TIC	TIC
Backing pump options		nXDS / RV / XDD	nXDS / RV / XDD	nXDS / RV	nXDS / RV	nXDS / RV

Documentation

nEXT Turbopumping Station Product Information

nEXT turbomolecular pumping stations are configurable with turbomolecular pump speeds ranging from 47 to 400 l/s and a choice of oil sealed or dry backing pumps ranging from 1 to 20 m³/h. All our nEXT turbomolecular pumping stations feature an integrated TIC turbo and instrument controller offering full control of the package via a simple intuitive interface.

The nEXT turbomolecular pumping stations are supplied fully assembled and ready to run straight out of the box and include common accessories such as mist filters and mains cables as appropriate to the chosen pumps. As fully featured high end stations they include RS232 serial communications and Windows® software for monitoring and control.

Request a Quote

1 6

Product Features

RANGE OF TURBOMOLECULAR PUMP OPTIONS
Choice of turbomolecular pump with speeds ranging from 42 to 400 l/s and inlet flanges from DN40 to DN160.
FULLY CONTROLLABLE
TIC turbo and instrument controller offers full control of pumps and up to 3 Active gauges as well as offering full serial remote communications.
USER SERVICEABLE
All nEXT turbomolecular pumps, and backing pumps are fully user serviceable.

ROBUST METAL FRAME
All metal frame with locking castors for a robust but easily mobile system. Bench mounting kit included for safe bench top operation.
LOW VIBRATION
Backing pump mounted on anti-vibration mounts for low levels of transmitted vibration.
CHOICE OF BACKING PUMPS
Choice of oil sealed and dry backing pumps with capacities ranging from 1 to 20 m³/h.

Dimensions

Performance Curve
