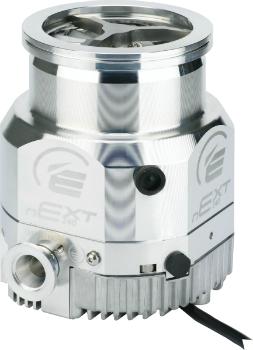

Next Turbo pumps

Name: Next Turbo pumps
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The nEXT pumps offer superior performance, reliability and end user serviceablity, setting the benchmark for scientific turbomolecular pumps.

Superior performance

Exceptional pumping speeds and compression ratios

Superior reliability

Built on decades of experience and based on our tried and trusted EXT and STP ranges

4-year maintenance

Up to 4 years between pump service

100% User-serviceable

Quick and low-cost oil lubrication cartridge and full bearing change

Hybrid Bearing Technology

Ceramic lower bearing and dry permanent magnet upper bearing

View full details

Edwards NEXT Sizes		nEXT85H NW40	nEXT85H ISO63	nEXT85H CF63	nEXT85H ISO130	nEXT240 Version D	nEXT240 Version T	nEXT300 Version D	nEXT300 Version T	nEXT300 VersionD	nEXT300 Version T
Peak pumping speed
N₂	l/s	47	84	84	86	240	240	300	300	400	400
Ar	l/s	44	80	80	84	230	230	280	280	380	380
He	l/s	61	78	78	78	230	230	340	340	390	390
H₂	l/s	44	54	54	54	166	165	280	280	325	325
Compression Ratio
N₂	l/s	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹
Ar	l/s	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹	>10¹¹
He	l/s	2x10⁷	2x10⁷	2x10⁷	2x10⁷	3x10⁵	10⁶	10⁶	3x10⁶	10⁸	>10⁸
H₂	l/s	5x10⁵	5x10⁵	5x10⁵	5x10⁵	10⁴	10⁵	5x10⁴	10⁵	5x10⁵	10⁶
Ultimate vacuum	mbar	<5x13⁻13	<5x13⁻13	<5x13⁻13	<5x13⁻13	<5x13⁻13	<5x13⁻13	<5x13⁻13	<5x13⁻13	<5x13⁻13	<5x13⁻13

Documentation

nEXT85 Datasheet

nEXT turbomolecular pumps are hybrid bearing pumps with a compound drag stage and integrated controllers for pumping speeds from 47 to 400 l/s. They all feature a permanent magnetic upper bearing, which eliminates hydrocarbons at the top of the rotor and an oil lubricated lower bearing for reliable high speed operation.

The on-board controller interfaces directly with our TIC and TAG controllers to provide low cost system integration. The nEXT models also allow user serviceability by way of a user changeable bearing cartridge for low cost of ownership.

Request a Quote

nEXT turbo pumps Brochure

1 6

Product Features

PERMANENT MAGNET UPPER BEARING
for a hydrocarbon free vacuum, reduced vibration and minimum wear
MULTIPLE DRAG STAGES
for higher compression ratios and geater backing pressure tolerance
SENSORLESS DRIVE
for high efficiency and compactness with reduced stray magnetic fields

VENTING
Manual vent port with automatic valve accessories for rapid venting and quick cycle times
FLEXIBLE CONTROL
simple parallel operation, sophisticated serial control, wide operating voltage range from 24V to 48V d.c.
PATENTED BEARING SUSPENSION
system that minimises noise and vibration transmitted to the vacuum system

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
