The great shape of high performance dry vacuum pumping

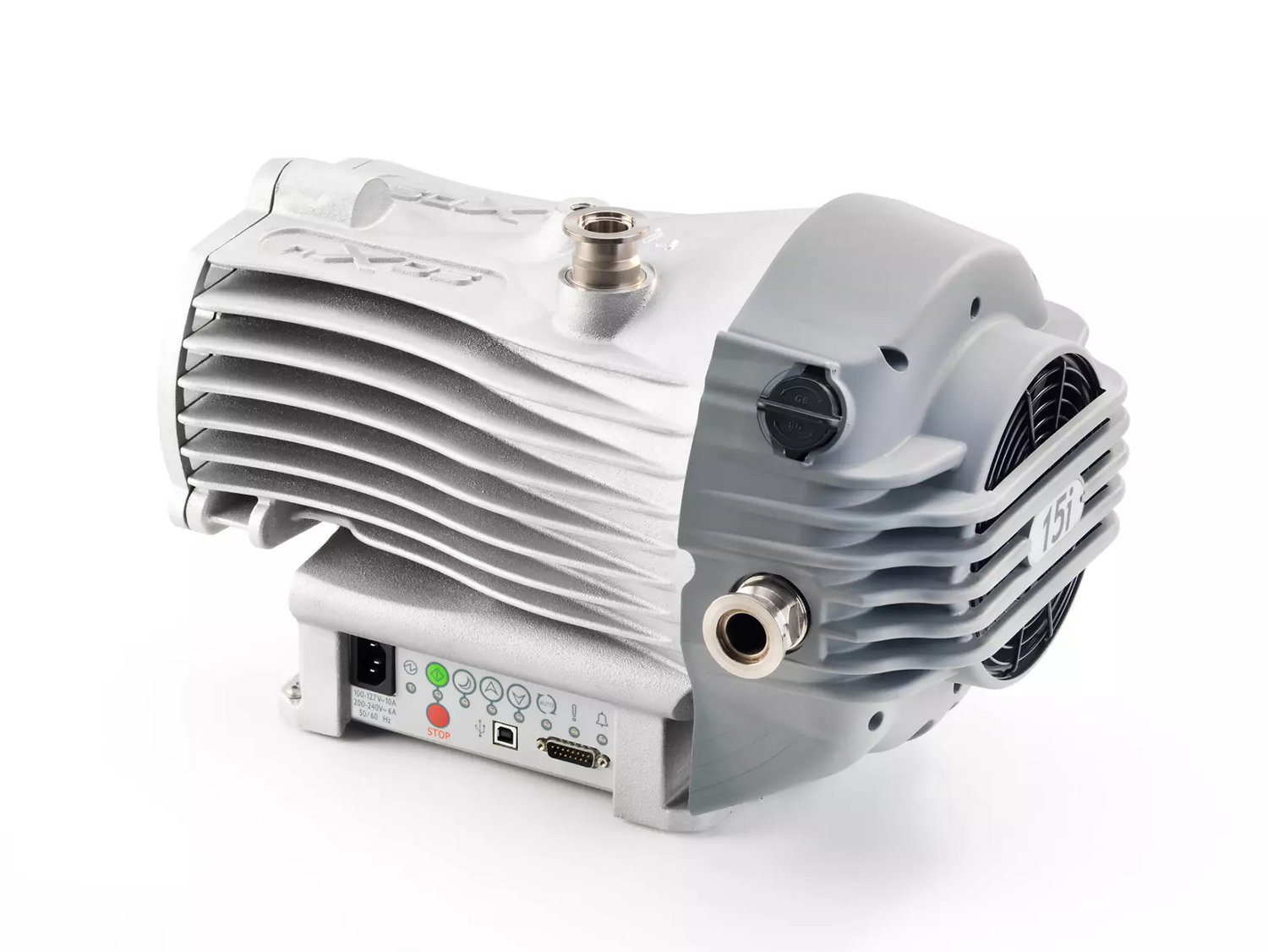

Edwards mXDS, nXDS, and the XDS range of dry scroll pumps

Edwards dry scroll pumps offer proven dry, clean vacuum solutions for a wide range of applications.

Scroll pumps are an excellent alternative to rotary vane pumps where oil free pumping is desirable.

View full details

1 5

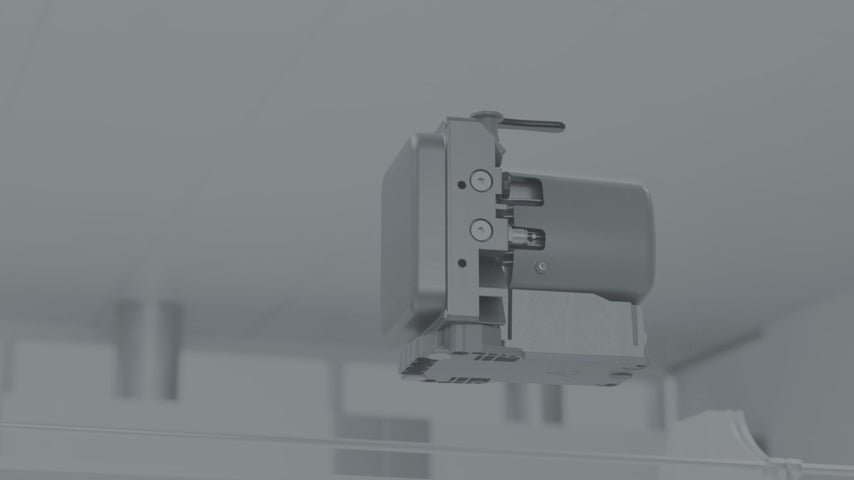

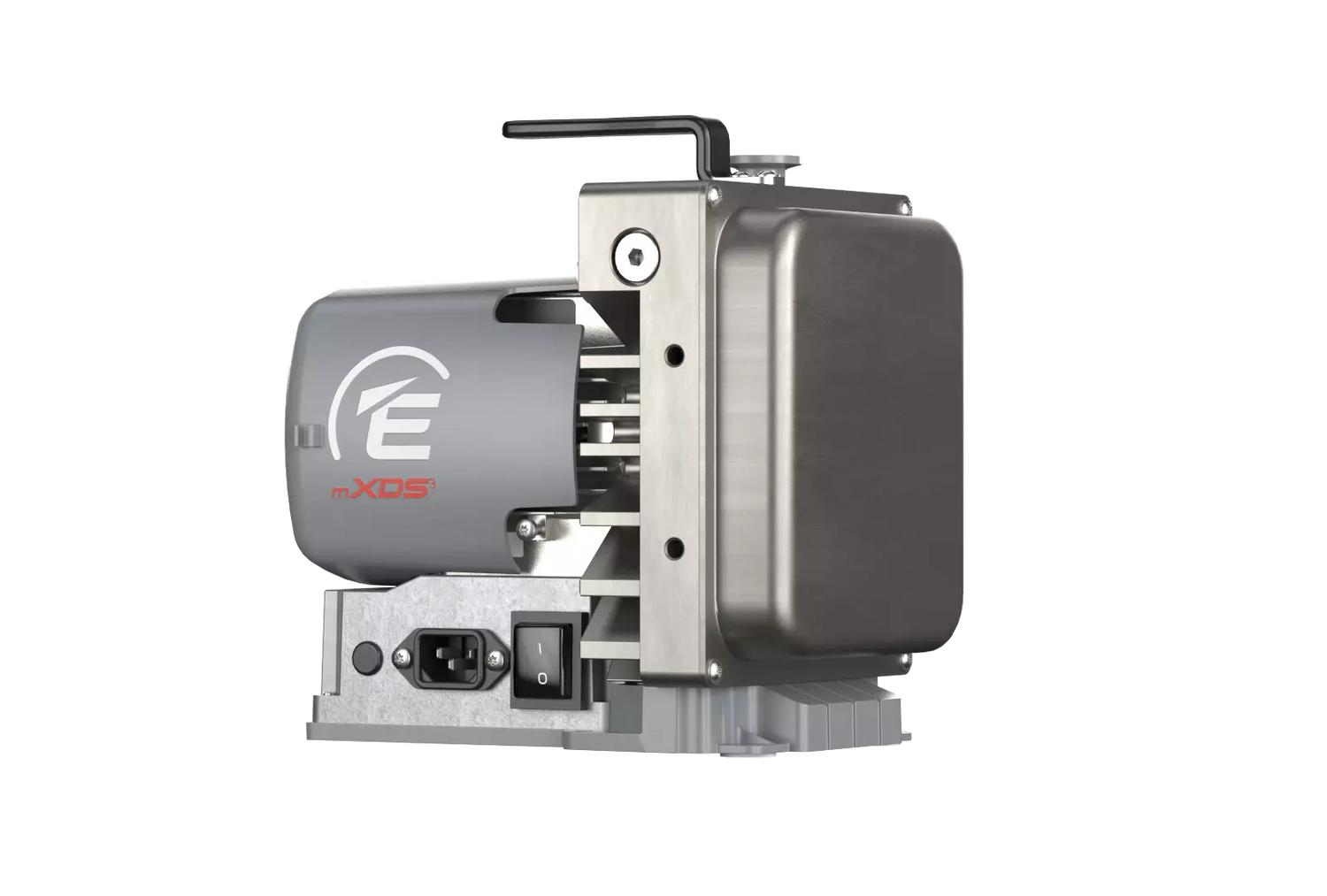

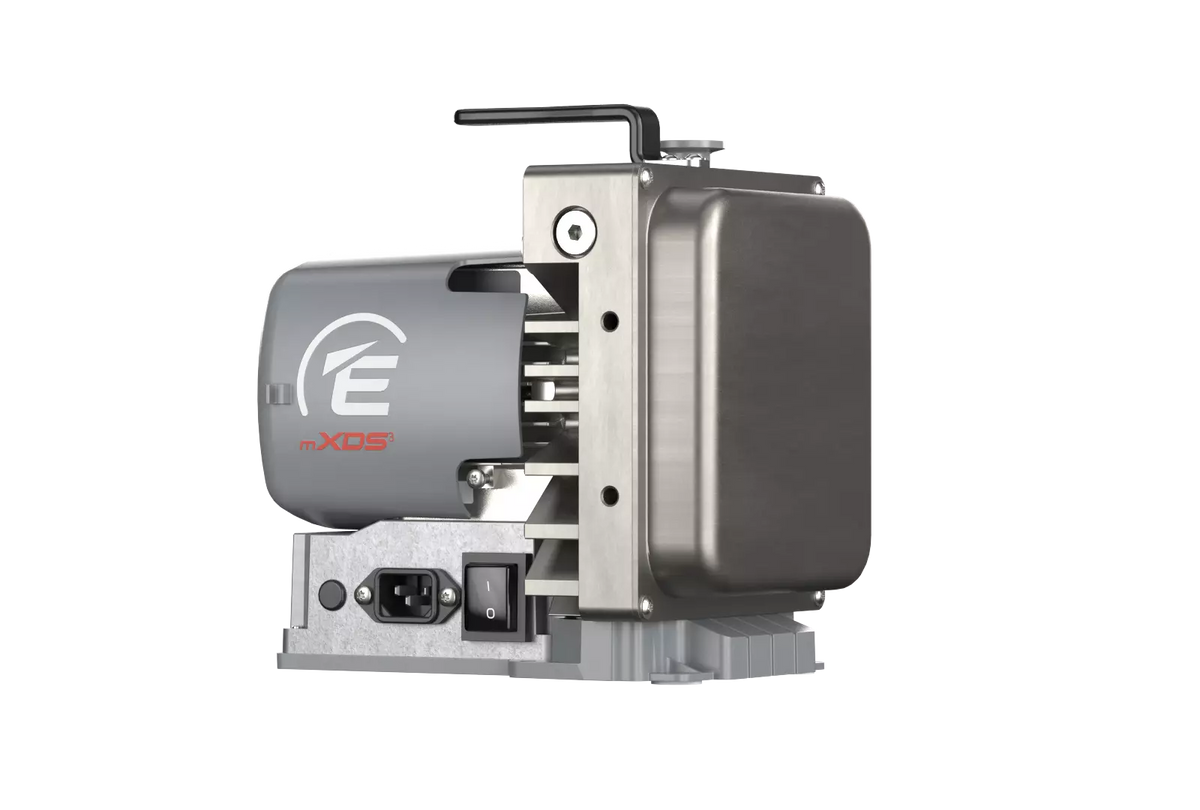

mXDS dry scroll pumps

mXDS is a small dry alternative to oil sealed rotary vane pumps and diaphragm pumps of a similar capacity delivering 3 m3h-1 peak speed and 0.1 mbar ultimate.

The mXDS is compact and lightweight, weighing in at just under 8kg with a purpose made carry handle making them highly portable.

For system builders the pump can typically be mounted horizontally or vertically and for convenient connection the inlet can be orientated vertically or horizontally with a push fit alternative available as an accessory.

Filling the performance gap in the Edwards small dry pump portfolio.

These compact scroll pumps have a gas ballast facility incorporated in the design as standard for water vapour handling and an exhaust valve just like the larger nXDS.

With a typically lower power requirement compared to similar capacity pumps, which makes them great for energy savings and an ideal choice for helping to reduce your carbon footprint.

The optimised fan cooling is beneficial in reducing noise for quieter operation leading to a pleasant working environment, and being clean oil free pumps with no oil to top up, replace or dispose of are an environmentally friendly option.

mXDS3 are offered as standard or configured with a solenoid inlet isolation valve for enhanced system protection and supplied with exhaust silencer/filter accessory to become the mXDS3s.

mXDS3 - Flexibility
mXDS3 - Environment
mXDS3 - Performance Gap
mXDS3 - Performance

Experience the advantages that come with the mXDS

Flexibility: Compact and lightweight, mountable horizontally or vertically with an inlet that can be orientated vertically or horizontally
Performance: 3 m3h-1 pumping speed with 0.1 mbar ultimate vacuum, gas ballast facility along with an exhaust valve for system protection
Environment: Clean oil free with no oil to top up, replace or dispose of with a lower power requirement to help reduce carbon footprint

XDS dry scroll pumps

Have become industry standard when dry pumping is essential, proving to be a robust and clean vacuum pump solution in a range of applications with pumping speeds up to 40 m3h-1.

Take another step!

A combination of the patented double start scroll form technology and by-pass valves have enabled Edwards to offer the XDS35i Enhanced range of pumps to complement our original family.

XDS35i incorporates smart drive technology to look after the pump and provide worldwide performance.

With reduced peak power requirements at roughing pressures and continuous higher roughing speeds, these enhanced pumps enable the user to address the performance envelope to help with those special applications where roughing performance or the ability to evacuate a large chamber volume is important.

The enhanced versions offer up to 20% lower peak power requirements during initial pump down: meaning it has the ability to pump down large volume chambers with no loss of performance.

It has up to 25% more pumping speed at these roughing pressures, which helps on higher frequency cycling applications as well.

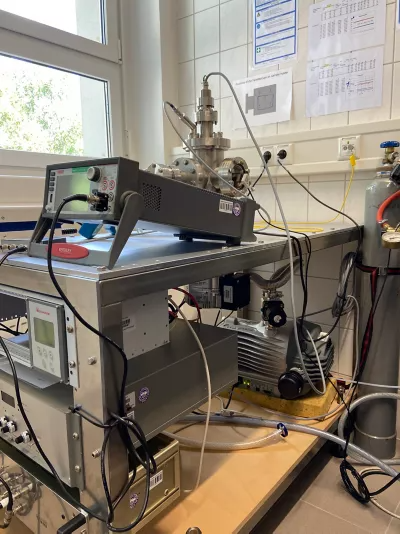

Edwards vacuum fuels Jena university's research on 2D materials

Edwards Presents XDS35i Enhanced Large Scroll Pumps presented by David Goodwin

The XDS benefits!

Bearing shield: ensures separation between process gases and bearing lubrication to ensure clean vacuum and no possibility of contamination to lubrication from process gases, which prolongs bearing life.
Smart motor drive: means consistent performance globally, pump overload protection and remote start/stop capability.
High flow gas ballast: allows pumping of vapours including water vapour at up to 240 gh-1.
Simple single sided scroll design: allows maintenance to be done in minutes for low cost of ownership and maximum up-time.

Edwards vacuum fuels Jena university's research on 2D materials

Applications

High energy physics

Beam lines
Accelerators
Mobile pump carts
Turbopump backing
Laser evacuation

Research and development

Chamber evacuation
Coating systems
Turbopump backing

Electron microscopy

TEM, SEM
Sample coaters

Sample preparation

Gel dryers
Glove boxes
Rotary evaporators
Centrifuges

Chemical

Gel dryers
Glove boxes
Rotary evaporators
Centrifuges
Solvent recovery
Distillation/extraction/ filtration

Mass spectrometry

GCMS, LCMS, ICPMS
MALDI
Surface science
Leak detectors and RGA

Industrial

Gas recovery and recirculation
Glove boxes
Brake line and air conditioning evacuation
Coating systems
Freeze drying
Gas bottle filling/emptying
Refrigeration system manufacture
Degassing/curing (oil, epoxy resin)

Sustainability
