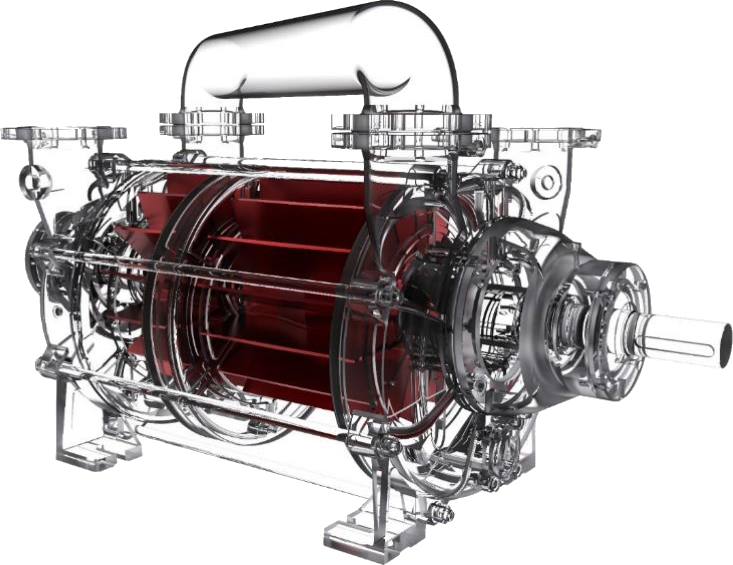

Liquid Ring

Name: Liquid Ring
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

LIQUID RING PUMPS

The first liquid ring pumps were developed in the early 1900’s. They are, still today, very popular in the chemical, pharmaceutical, and allied industries, as a result of their unique characteristics.

We provide a wide range ...

Up to 38.000 m³/h
Standard or custom engineered packages
Standard or special materials
Single and two stage liquid ring pumps
Once-through, partial or total recirculation
Engineering, applications and process expertise.

View full details

Standard Platform

We are able to offer a selection of standard products and packages to fit a wide range of requirements. These solutions range from a standard bare-shaft pump, all the way to pre-engineered total recirculation packages that can save the customer time and cost, while at the same time ensuring proven engineered solutions.

Bareshaft Pumps

Standard Product
HR Series: 7.500 m³/h - 30 mbar
LR1A Series: 25.000 m³/h - 30 mbar
LR1B Series: 40.000 m³/h - 180 mbar

Base Mounted

Standard Product
Easy installation with universal connections
Safe Area 50Hz and 60Hz speed for each model
60 models without Motor / IEC 50 / IEC 60Hz

Standard pre-engineered total recirculation packages

Modular - simple installation and operation
Single-stage or Two-stage
Once through / Partial / Total recovery
Universal connections

Configured Packages

We offer a selection of standard products and packages to fit a wide range of requirements. These solutions range from a standard bare-shaft pump, all the way to pre-engineered total recirculation packages that can save the customer time and cost, while at the same time ensuring proven engineered solutions.

Standard packages
Scope modified to suit customer specifications
Standard documentation packages available
Different package styles, materials and ratings

Engineered to Order

Edwards Custom Engineered Products group (CEP) combines years of experience in process and mechanical design with project management skills, for the supply of individual items or plant, or the execution of projects including installation and commissioning.

Complex specification
Chemical, Petrochemical, Oil & Gas
Hybrid steam ejector, condenser and LRP combinations
API681 design and manufacture
Pipework and instrumentation to client specification – preferred vendors
High level of testing, certification and documentation
Aluminium Bronze or Super Duplex SS construction
Hybrid design with air ejectors

Documentation

Liquid Ring Brochure

EDWARDS THE PARTNER OF CHOICE

Edwards is a world leader in the design, technology and manufacture of vacuum equipment with over 95 years’ history and more than 75 years’ manufacturing experience.

Edwards believes in delivering results that bring value to our customers by using our breadth of industry experience to identify and apply solutions to your problems. Using the most innovative and up-to-date modelling techniques, we can optimise the pumping configuration for customers to provide a system design giving the maximum performance in the most reliable and cost-effective way
