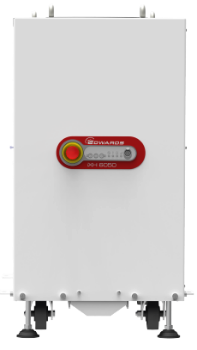

IXH Dry Pump

Name: IXH Dry Pump
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The iXH dry pump range is an evolution of our market leading iH, and sets new standards for harsh process capability, reliability and lower cost of ownership. iXH pumps offer greatly increased dust and powder handling capabilities.

100 - 6.000 m³/h

Modular design with a wide range of pump sizes

More process capability

Greatly increased powder handling capability and innovative Gas Buster™ technology

'Plug and Pump'

Integral controller and safety systems for flexible operation. Low installation costs.

No routine maintenance

No preventive maintenance between major overhauls

View full details

IXH SIZES		iXH100	iXH610	iXH1210
Peak pumping speed	m³/h	100	665	1025
Ultimate pressure	mbar	0.02	0.005	0.005
Power at ultimate	kW	2.1	2.6	3.2
Power in Green Mode	kW	0.045	0.045	0.045
Noise at ultimate	dB(A)	63	64	64

Documentation

iXH Product Information

iXH sets new standards for really harsh process capabilities, reliability, and low cost of ownership. iXH pumps offer greatly increased dust and powder handling capabilities.

A wide pump temperature range allows optimisation to minimise by-product accumulation from condensation and plating reactions. iXH is available as primary pump at 100 m³/h (the iXH100) or combined with inverter-driven boosters delivering peak speeds of 665 m³/h (iXH610) or 1025 m³/h (iXH1210).

Request a Quote

1 6

Product Features

PERFORMANCE
High capacity dry pumps and boosters give an expanded process window to enhance yields
POWDER HANDLING
Greatly increased powder handling capability and innovati ve Gas Buster™ (1) technology
HYDROGEN PUMPING
Greatly increased hydrogen pumping speed for advanced EPI and solar processes

TEMPERATURE CONTROL
Wide temperature range allows optimisation of pump to minimise by-product accumulation from condensation and plating
ZERO MAINTENANCE
Zero maintenance between overhauls and low cost of ownership
ENERGY EFFICIENT
Low power consumption plus Green Mode plus no routine maintenance, for low cost of ownership

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
