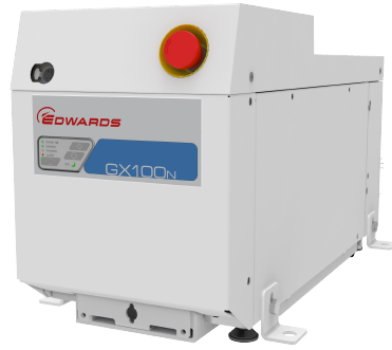

GX Dry Pump

Name: GX Dry Pump
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

GX is the ideal choice for medium duty applications and sets new standards for zero maintenance between overhauls and low cost of ownership

90 - 800 m³/h

Hermetically sealed, innovative mechanism

0.005 / 0.001 mbar

Superior vacuum levels achieved

'Plug and Pump'

Integral controller and safety systems for flexible operation. Low installation costs.

< 55 / 60 dB(A)

Low noise even at high pumping speeds

No routine maintenance

No preventive maintenance between major overhauls

View full details

GX Sizes		GX100N	GX600N	GX1000N
Peak pumping speed	m³/h	90	600	1000
Ultimate pressure	mbar	0.005	0.001	0.001
Power at ultimate	kW	1.0	1.5	1.5
Power in Green Mode	kW	0.05	0.05	3.8
Noise at ultimate	dB(A)	<60	<55	<55

Documentation

GX Product Information

The GX Dry Vacuum Pump Series sets new standards for zero maintenance between major overhauls. Improved efficiency lowers the cost of ownership and provides continuous pumping duty throughout the pressure range.

GX pumps are available in a wide range of peak speeds and variants to address applications from clean through to medium-duty processes. A modular design allows users to configure GX drypumps to suit individual fab requirements. An ultra-compact footprint allows installation options including on-tool, close proximity, or remote.

It is available as the stand-alone GX100N pump, or combined with an inverter-driven booster as the GX600N (620 m³/h peak speed) and X1000N (800 m³/h peak speed) units.

Request a Quote

1 6

Product Features

ENERGY EFFICIENT
High performance motors and inverter drives with low operating power consumption
UNIQUE PERFORMANCE
Very high load capability for reliability. Designed for reliability and performance
SMOOTH RUNNING
Oil lubricated precision bearings ensure smooth, low vibration operation with no routine maintenance

ULTRA-COMPACT
An ultra-compact footprint allows installation options including on-tool, close proximity, or remote.
ZERO MAINTENANCE
Zero maintenance between overhauls and low cost of ownership
AUC MODE
Active Utility Control mode reduces power consumption during idle periods

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
