EXS Dry Screw Vacuum Pumps

Name: EXS Dry Screw Vacuum Pumps
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

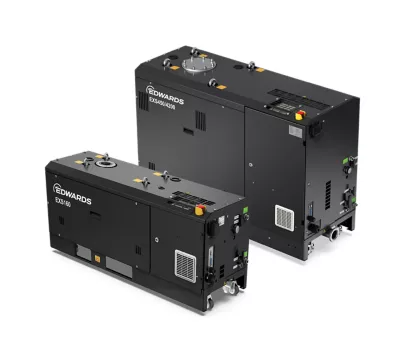

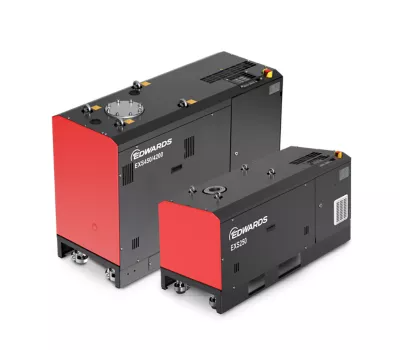

EXS Dry Screw Vacuum Pumps

Increased roughing speeds and low ultimate performance for harsh industrial applications

Based around the same technology that we use in our GXS pumps, the EXS has been designed to bring the advantages of our market leading technology in a package that focuses on simplicity and robustness. With more performance, simple control philosophy and low maintenance costs, the EXS will deliver reliable performance for many years to come. Our EXS series of dry screw vacuum pumps are available in EXS160~750 and booster combinations.

View full details

Applications

The EXS pump is suitable for a range of applications in various industries including:

Lithium-ion battery

Electrode drying
Electrolyte filling
Formation

Metallurgy

Vacuum Brazing
E-beam welding
Nitro carburising
Low pressure nitriding
Low pressure carburising
Carbon vapour impregnation
Sintering
Metal injection moulding
Precision investment casting
Vacuum arc refining
Steel degassing

Plasma processes

Plasma welding
Plasma nitriding

Vacuum chamber evacuation

Space simulation chambers
Gas recovery/circulation
Load lock chambers

Solar

Silicon crystal-pulling
PV lamination

Coating

Roll web coating
Hard coating (CVD/DLC)
Surface activation
Plasma spray
Glass coating

Technical specifications

Specification		Unit	EXS160	EXS160/1750	EXS250	EXS250/2600
General	Ultimate vacuum	mbar (Torr)	1x10^-2 (8x10^-3)	<1x10^-3 (<8x10^-4)	1x10^-2 (8x10^-3)	<1x10^-3 (<8x10^-4)
	Peak pumping speed	m³/hr (cfm)	160 (94)	1200 (706)	250 (147)	1900 (1118)
	Maximum rotor speed	Rev/min	6600	DP: 6600 MB: 6120	6600	DP: 6600 MB: 6120
	Inlet/Outlet		ISO63/NW40	ISO100/NW40	ISO63/NW40	ISO160/NW40
Electrical	Electrical supply	V	380-460V 3Ph 50/60Hz 200-230V 3Ph 50/60Hz	380-460V 3Ph 50/60Hz 200-230V 3Ph 50/60Hz	380-460V 3Ph 50/60Hz 200-230V 3Ph 50/60Hz	380-460V 3Ph 50/60Hz 200-230V 3Ph 50/60Hz
	Ultimate power	kW (hp)	3.8 (5.1)	5.1 (6.8)	4.0 (5.4)	5.3 (7.1)
	Full load power	kW (hp)	5.0 (6.7)	7.4 (9.9)	9.0 (12.1)	9.7 (13.0)
Cooling	Connection	inch	⅜" BSP male	⅜" BSP male	⅜" BSP male	⅜" BSP male
	Cooling flow (Always on)	l/min (gal/min)	4.0 (1.1)	7.0 (1.9)	4.0 (1.1)	7.0 (1.9)
	Minimum differential pressure	bar	1	1	1	1
	Maximum supply pressure	barg (psig)	6.9 (100)	6.9 (100)	6.9 (100)	6.9 (100)
	Temperature	°C (°F)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)
Purge	Connection	inch	½" BSP male	½" BSP male	½" BSP male	½" BSP male
	Pressure	barg (psig)	2.5-6.9 (36-100)	2.5-6.9 (36-100)	2.5-6.9 (36-100)	2.5-6.9 (36-100)
	Shaft seal flow (Always on)	l/min (gal/min)	12 (3.17)	12 (3.17)	12 (3.17)	12 (3.17)
	Gas ballast flow (Manual adj.)	l/min (gal/min)	0-50 (0-13.2)	0-50 (0-13.2)	0-50 (0-13.2)	0-50 (0-13.2)
Operation	Ambient temperature range	°C (°F)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)
	Noise level with silencer	dB(A)	<64	<64	<64	<64
	Maximum exhaust back pressure	bara (psig)	1.2 (17.4)	1.2 (17.4)	1.2 (17.4)	1.2 (17.4)
Lubrication	Oil		PFPE Drynert 25/6	PFPE Drynert 25/6	PFPE Drynert 25/6	PFPE Drynert 25/6
	Oil volume	l (gal)	0.7 (0.2)	1.4 (0.4)	0.7 (0.2)	1.4 (0.4)

Specification		Unit	EXS450	EXS450/2600	EXS450/4200	EXS750	EXS750/2600	EXS750/4200
General	Ultimate vacuum	mbar (Torr)	1x10^-2 (8x10^-3)	<1x10^-3 (<8x10^-4)	<1x10^-3 (<8x10^-4)	1x10^-2 (8x10^-3)	<1x10^-3 (<8x10^-4)	<1x10^-3 (<8x10^-4)
	Peak pumping speed	m³/hr (cfm)	450 (265)	2200 (1295)	3026 (1781)	740 (435)	2300 (1354)	3450 (2032)
	Maximum rotor speed	Rev/min	6600	DP: 6600 MB: 6120	DP: 6600 MB: 6120	6600	DP: 6600 MB: 6120	DP: 6600 MB: 6120
	Inlet/Outlet		ISO100/NW50	ISO160/ISO63	ISO160/ISO63	ISO100/NW50	ISO160/ISO63	ISO160/ISO63
Electrical	Electrical supply	V	380-460V 3Ph 50/60Hz 200-230V 3Ph 50/60Hz	380-460V 3Ph 50/60Hz 200-230V 3Ph 50/60Hz	380-460V 3Ph 50/60Hz 200-230V 3Ph 50/60Hz	380 - 460 3Ph 50/60Hz	380 - 460 3Ph 50/60Hz	380 - 460 3Ph 50/60Hz
	Ultimate power	kW (hp)	7.2 (9.6)	8.8 (11.8)	9.4 (12.6)	10.5 (14)	11.1 (14.9)	12 (16)
	Full load power	kW (hp)	17.3 (23.2)	16 (21.5)	18.5 (24.8)	22 (30)	24 (32.2)	24 (32.2)
Cooling	Connection	inch	⅜" BSP male	⅜" BSP male	⅜" BSP male	⅜" BSP male	⅜" BSP male	⅜" BSP male
	Cooling flow (Always on)	l/min (gal/min)	10 (2.6)	12 (3.2)	12 (3.2)	12 (3.2)	15 (4)	15 (4)
	Minimum differential pressure	bar	1	1	1	1	1	1
	Maximum supply pressure	barg (psig)	6.9 (100)	6.9 (100)	6.9 (100)	6.9 (100)	6.9 (100)	6.9 (100)
	Temperature	°C (°F)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)
Purge	Connection	inch	½" BSP male	½" BSP male	½" BSP male	½" BSP male	½" BSP male	½" BSP male
	Pressure	barg (psig)	2.5-6.9 (36-100)	2.5-6.9 (36-100)	2.5-6.9 (36-100)	2.5-6.9 (36-100)	2.5-6.9 (36-100)	2.5-6.9 (36-100)
	Shaft seal flow (Always on)	l/min (gal/min)	12 (3.17)	12 (3.17)	12 (3.17)	12 (3.17)	12 (3.17)	12 (3.17)
	Gas ballast flow (Manual adj.)	l/min (gal/min)	0-130 (0-34.3)	0-130 (0-34.3)	0-130 (0-34.3)	0-130 (0-34.3)	0-130 (0-34.3)	0-130 (0-34.3)
Operation	Ambient temperature range	°C (°F)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)	5-40 (41-104)
	Noise level with silencer	dB(A)	<64	<64	<64	<70	<70	<70
	Maximum exhaust back pressure	bara (psig)	1.2 (17.4)	1.2 (17.4)	1.2 (17.4)	1.2 (17.4)	1.2 (17.4)	1.2 (17.4)
Lubrication	Oil		PFPE Drynert 25/6	PFPE Drynert 25/6	PFPE Drynert 25/6	PFPE Drynert 25/6	PFPE Drynert 25/6	PFPE Drynert 25/6
	Oil volume	l (gal)	1.8 (0.5)	2.5 (0.7)	3.6 (1.0)	2.4 (0.6)	3.1 (0.8)	4.2 (1.1)

Robust design features

Dependable new gas system with manual gas ballast control with sleek sheet metal protective enclosure.

Simple electrical strategy

In-built, off-shelf inverter for simple connection and communication. Protection sensors fitted, electrical design for reliability and safety.

Low power and utilities consumption

The EXS has a low carbon footprint thanks to its low power and utilities usage. With no contaminated or dirty disposable oil, it is also easy on the environment.

Increased roughing speeds and low ultimate performance

Gain increased productivity with faster processing and pump down times; low ultimate pressures up to <1 x 10-2 for dry screw vacuum pumps and <1 x 10-3 for pump plus booster combination.

Non-contacting long-life seals

Non-contacting long-life seals with integral oil blocking labyrinth seal provides highly effective sealing.

Advanced Core technology

Advanced quality bearings and special purpose oil with low vapour pressure for application compatibility.

Detailed data insight and easy control

A wide variety of connectivity solutions including I/O, Fieldbus communication, IoT allow the real time detailed insight and access of the pump.
