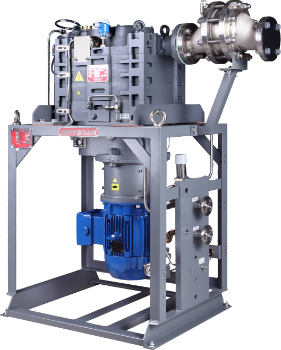

EDP Dry Claw

Name: EDP Dry Claw
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

Edwards, a world leader in dry vacuum pump technology, successfully pioneered the use of environmentally friendly dry vacuum pumps in the early 1980s. With hundreds of thousands of systems installed worldwide, Edwards dry pumps create significant benefits for customers in many applications and industries.

80 to 400 m³/h

Plus larger capacities if combined with Roots Boosters

Atm. to < 0.5 mbar

Increased productivity and product quality

Industry proven, tried and tested

Specifically designed for chemical applications

Designed and tested for safety and reliability

Stable operation, even during process upsets

Low cost of ownership

Easy maintenance, low utilities consumption and no cooling gas injection required

View full details

EDP Pump Sizes		EDP80	EDP160	EDP250	EDP400
Peak pumping speed	m³/h	83	163	260	377
Ultimate vacuum (total pressure)	mbar	0.5	0.5	0.5	0.4
Max. back pressure (standard/optional)	mbar	1150 / 1300	1150 / 1300	1150 / 1300	1150
Power consumption @10mbar	kW	3.3	4.9	6.0	7.0
Noise (max. with exhaust silencer)	dBA	73	77	79	82

Documentation

EDP Datasheet

Edwards pioneering expertise is incorporated in our chemical dry pumps to satisfy the demanding requirements of the chemical, petrochemical and pharmaceutical industries. We offer a range of four pumps with 80 - 400 m³/h capacity, and ultimate vacuums of less than 1 mbar. Our chemical dry pumps meet the highest safety and performance standards.

EDP pumps are based on Edwards’ oil-free, noncontacting, award-winning, reverse claw mechanism. They provide consistent vacuum at high efficiencies and low costs of ownership. Dry pumps completely eliminate all problems of process contamination and the creation of polluted effluent, which are experienced with traditional wet vacuum pump technologies.

Request a Quote

1 6

Product Features

SIMPLE AND ROBUST
Simple and robust construction with sufficient power to ensure reliable operation. Minimum design life of 25 years.
STAGED COMPRESSION
Staged compression for an optimal temperature profile inside the pump, without the need to inject cooling gas.
SAFETY
Pumps flammable gases safely. Pumps corrosive gases without corroding.

RELIABILE
Short gas path that eliminates the build-up of particles and corrosion - design patented by Edwards. Non-contact mechanism that provides long life and high reliability.
ECONOMIC
Easy maintenance and low utilities consumption.
CLEANABLE
Can be cleaned with solvents, liquids or vapour.

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
