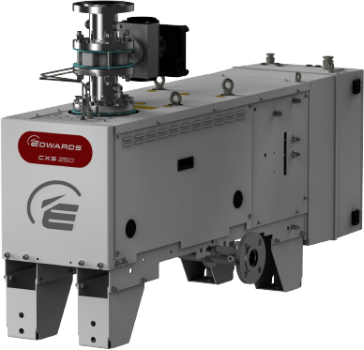

CXS Dry Screw

Name: CXS Dry Screw
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

With more than 90 years of experience and more than 150.000 dry pumps installed worldwide, the CXS represents the latest generation of dry pumps for the chemical and pharmaceutical industries.

160 to 250 m³/h

Plus larger capacities if combined with Roots Boosters

Atm. to <0.02 mbar

Increased productivity and product quality

Robust

Reliable operation even in harsh industrial applications

<64 dB(A)

Quiet running with low power and utilities consumption

Intelligent

On-board controller with extensive communication and automated control capabilities

View full details

CXS Pump Sizes		CXS160	CXS250
Peak pumping speed	m³/h	160	250
Capacity at 10 mbar	m³/h	132	230
Ultimate vacuum	mbar	<0.02	<0.015
Noise with silencer	dBA	64	64
Power consumption @ 10mbar	kW	3.6	3.8
Inlet connection	ANSI/DIN	3" / DN80	3" / DN80

Documentation

CXS Brochure

Edwards is a world leader in the design, technology and manufacture of vacuum pumps with over 95 years’ history and more than 75 years’ manufacturing experience.

Our CXS dry pumps take vacuum performance to the next level. With unique screw technology and world leading high efficiency drives, enabling advanced temperature control and long service intervals, you are guaranteed best-in-class pumping speeds and low running costs for many years to come.

Request a Quote

1 6

Product Features

CONTROL
Integral PID pressure control with in-built inverter for consistent operation. Data monitoring via on-board communication controller. Special start-up and shutdown modes available.
PERFORMANCE
Continuous vacuum from atmosphere to 10⁻³ mbar for a robust, repeatable process. Deeper vacuum than traditional technologies and not limited by seal fluid or cooling water temperature.
SAFETY
Explosion tested and certified by independent authorities to meet strict safety standards. ATEX compliant for T4 IIB/IIB3 gases

RELIABILITY
No end-compression plate to create potential for trapped solids, jammed rotors and hydraulic locks. No interstage condensers to create the potential for corrosion.
INNOVATIVE SCREW TECHNOLOGY
Tapered-screw technology for improved thermal stability and optimised pumping at all inlet pressures. The cooling system and compression technology deliver outstanding performance and active temperature control protects the pump from thermal shocks, condensation and corrosion.
EFFICIENT MOTOR AND DRIVE SYSTEM
Compact, high-speed motor with smaller footprint and lower noise. High start torque for maximum restart capability and reduced bearings temperatures for longer life.

Dimensions

Performance Curve

Sustainability

From renewable energy, standard recycling programme for all our pumps, to favouring energy efficient products, we strive to reduce our environmental footprint as a company as well as our products and services
