Active Pirani Gauge

Name: Active Pirani Gauge
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

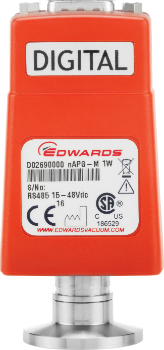

Edwards nAPG series, active Pirani vacuum gauges is available in 2 models. The nAPG-M is the standard model and measures to 10⁻³ mbar. The nAPG-LC is a corrosion resistant version with measurement to 10⁻⁴ mbar.

Both gauges feature compact size for easy installation, a serial output and a replaceable sensor tube. It is anticipated that the digital gauges will be compatible with the next generation of Edwards instrument and active gauge controllers and displays. They are CSA and C/US approved as well as fully RoHS compliant due to their leadfree construction.

Wide-range supply voltage allows operation from 15 to 48V d.c

Sensor tube can be baked to 150°C

Remote calibration possible

NW16,NW25 and DN16CF flange options for easy connection to vacuum systems

Adjustable open collector set-point output for straightforward process control and interlocking

View full details

TECHNICAL DATA		nAPG-M	nAPG-LC
Pressure range	mbar	atmosphere to 10^-3	atmosphere to 10^-4
Accuracy	mbar	+/- 15% at <10mbar	+/- 15% at <10mbar
Max overpressure	bar	10 bar absolute	10 bar absolute
Temperature range Operating	°C	5 to 60	5 to 60
Temperature range Storage	°C	30 to 70	30 to 70

1 6

Product Features

Dimensions

Performance Curve
