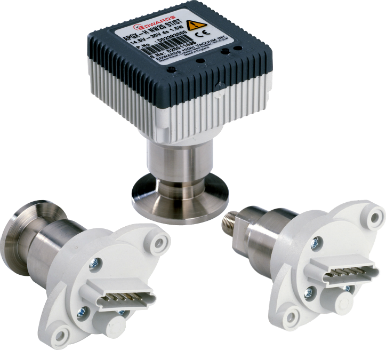

Active Linear Convection Gauge

Name: Active Linear Convection Gauge
Brand: VACPRO - Vacuum Process Solutions
Availability: OutOfStock

The Active Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10⁻⁴ mbar. The use of convection technology ensures accuracy and sensitivity are maintained to the top of the pressure range compared to conventional Pirani gauges, which lose accuracy above 100 mbar.

The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.

Wide measuring range 1333 to 3 x 10⁻⁴ mbar

Use of convection technology ensures consistent measuring accuracy (typically ±15%) and repeatability (±5%) to top of range

Reduced cost of ownership

Replaceable tubes are available
CSA, C/US Approved

View full details

Technical Data		APGX H
Pressure range	mbar	1333 to 3×10⁻⁴
Accuracy	mbar	Typically +/- 15%
Max overpressure	bar	10 bar absolute (145 psi)
Temperature range Operating	°C	+5 to +60
Temperature range Storage	°C	-30 to +70
